5G Means Fifth Generation not 5 GHz nor 5 GB

https://www.pcmag.com/news/what-is-5g

DragonOS (Lubuntu) and SDRSharp

 Installed SDRSharp by following this: https://z34pec.blogspot.com/2018/02/how-to-install-sdr-sharp-on-ubuntu-1604.html

VirtualRadar.exe.config on Linux

Needed this file in the Virtual Radar Linux directory. Culled from https://forum.virtualradarserver.co.uk/viewtopic.php?t=757

 <pre>

<?xml version="1.0"?>
<configuration>
    <configSections>
    </configSections>
    <startup>
        <supportedRuntime version="v2.0.50727"/>
    </startup>

<runtime>
        <assemblyBinding  xmlns="urn:schemas-microsoft-com:asm.v1">
            <dependentAssembly>
                <assemblyIdentity name="Mono.Data.Sqlite"
                                  publicKeyToken="0738eb9f132ed756"
                                  culture="neutral" />
                <bindingRedirect oldVersion="2.0.0.0"
                                 newVersion="4.0.0.0" />
            </dependentAssembly>
        </assemblyBinding>
    </runtime>
</configuration>

</pre>



Linux Notes to Self



sudo apt-get install xorg openbox

sudo apt install p7zip-full

sudo apt-get install wine-development

sudo apt-get install mono-complete

sudo rc-service NetworkManager start

DSD + and Cubic SDR on DragonOS

Normally on Windows, one would have to download  DSD Plus: https://www.dsdplus.com/download-2/, download Virtual Audio Cable: https://vb-audio.com/Cable/.

On DragonOS which is Lubuntu, one could follow this https://www.hagensieker.com/wordpress/2018/04/29/dsd-in-ubuntu-18-04/.

After DSD Plus is setup, virtual audio is set as the input and analog stereo the output, run Cubic SDR and DSD Plus simultaneously, just like on Windows.

Virtual Radar and ADSB Sharp on DragonOS

 1. Download ADSBSharp from my Google Drive. https://drive.google.com/file/d/1Y5HkmfNWBgp4-xtnr16JoDjje-qdeL-X/view?usp=sharing

2. sudo apt install p7zip-full

3. Extract ADSBSharp.7z

4. Download Virtual Radar from here https://www.virtualradarserver.co.uk/Download.aspx

5. Extract to Virtual Radar folder.

6. sudo apt-get install mono-complete

7. sudo apt-get install wine-development

8. From a terminal inside the ADSB Sharp folder: mono ADSBSharp.exe

9. From inside the Virtual Radar folder: mono VirtualRadar.exe

10. If #9 fails, follow instructions here https://forum.virtualradarserver.co.uk/viewtopic.php?t=757

11. Refer to final set up at https://s33me.blogspot.com/2020/08/ads-b-and-virtual-radar-set-up.html


DragonOS_LTS Signal Processing

 In the still of the night, the DragonOS breathes life into an old Dell. BTW the user is "live" with no password.  Once installed onto the hard drive from https://sourceforge.net/projects/dragonos-lts/ , the user is your own. For DSD plus and virtual audio, I followed instructions at https://www.hagensieker.com/wordpress/2018/04/29/dsd-in-ubuntu-18-04/

Renegade Ham Radio in Los Angeles

 Rough crowd.

https://m.broadcastify.com/listen/feed/25419

HackRF One and Portapack Installation with Mayhem

Since the PortaPack that I bought off eBay was only $66.45, what could I expect but bare bones and not even bolts to hold the corners down. See images.

Nevertheless, the purpose of this exercise is loading Mayhem not aesthetics.  I followed the instructions HackRF+PortaPack+Mayhem firmware instructions on YouTube.

Here is my experience that includes the Mayhem flash tool NOT recognizing the HackRF+PortaPack.

1.  I had to first find a USB / SD card adapter so that I could format a 16 GB card to Fat32 from my Windows PC.

2. Leaving the USB / SD card plugged in to my PC,  I then downloaded the Mayhem fork from GitHub. Two folders: mayhem_v1.3.0_COPY_TO_SDCARD.7z, mayhem_v1.3.0_FIRMWARE.7z

 3. After using the PC to copy the files to the SD card, I plugged that card into the newly assembled HackRF+PortPack.

4. Then I attached the antenna and connected the HackRF+PortPack to my PC with a USB cable.

5. The BIG SNAP was that the Mayhem flash tool (flash_portapack_mayhem.bat)  did not recognize the HackRF+Portapack.

6. I resolved this, by uninstalling the USB driver from inside Windows Device Manager. See images.

7. After the uninstall, I UNPLUGGED and PLUGGED back in the HackRF+PortaPack.

8. Windows then recognized it again and so did the Mayhem flash tool.

9. All good now. See success image.

Bare bones set up on the cheap.

Device Manger

Success



Yet Another Ham Radio Contact Logger

 The newest version now has export to CSV and edit record functions.  Try it out at https://play.google.com/store/apps/details?id=com.s33me.hamsandwich.

The source code is at https://github.com/shimart96/HamSandwich2

Android 10 - Adding Icons to Menu Items

They don't make it easy and previous methods like the following do not work.

<item android:id="@+id/action_settings2"
   android:title="@string/action_settings2"
   android:icon=@drawable/your_image"/>

I had to add a menu type image through Android Studio (See screen shots) and use the following menu XML:

<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    tools:context="com.s33me.hamsandwich.BaseMenu"
    android:layout_height="match_parent" android:layout_width="match_parent">
    <item
        android:id="@+id/action_more"
        android:title=""
        >
      <item android:id="@+id/item1"
          android:icon="@drawable/ic_action_search"
          app:showAsAction="always"
          android:title="Search"
          />

    <item android:id="@+id/item4"
        android:icon="@drawable/ic_action_mail"
        app:showAsAction="always"
        android:title="Export"
        />
    <item android:id="@+id/item2"
        android:icon="@drawable/ic_action_home"
        app:showAsAction="ifRoom"
        android:title="Home"/>
    <item android:id="@+id/item3"
        android:icon="@drawable/ic_action_exit"
        app:showAsAction="ifRoom"
        android:title="Exit"
         />
    </item>
</menu>

This looks like this (ugly and inconsistent):

Ham Radio QSO Logger for Android

While I removed nearly twenty five of my old apps from Google Play, I also added a few that are meaningful to my current technological station in life like Ham Sandwich.  https://play.google.com/store/apps/details?id=com.s33me.hamsandwich

Fix Corrupted USB Flash Drive

 After flashing a 32GB drive to make it bootable, Windows now shows the drive to only be 2 GB.  Bad.

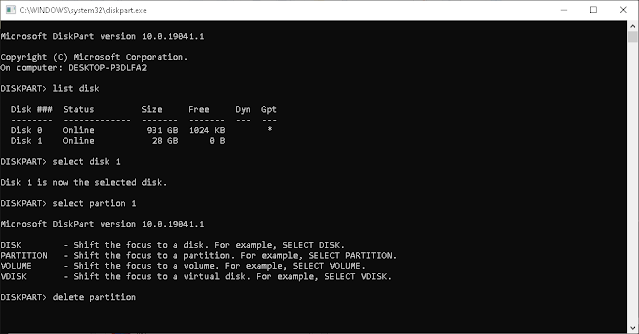

1) Type "DISKPART" from the Command Prompt
2) Type "LIST DISK" to see what number your USB drive is listed as.
3) Type "SELECT DISK 2"
4) Type "SELECT PARTITION 1"
5) Type "DELETE PARTITION" or "DELETE PARTITION OVERRIDE"
6) Type "CLEAN".
7) Type "CREATE PARTITION PRIMARY" to create a new, full-size partition.
8) Type "EXIT"





Ham Radio Contact Logger

 Files are at https://drive.google.com/drive/folders/1VCIqpKraauZ7OYZ9OimEljXIM6yhNBpz?usp=sharing

1. Download the apk for direct installation

2. Source is in HamSandwich.7z



You Do You and I Do Me



This is what I do not get.

When people cry for change, what change are they specifically requesting that would directly and significantly alter their current station in life for the better?

I could get behind specifics on an individual level, but a macro cry for change smacks of a vacuous emotional reaction to how the wind is blowing and a blissful ignorance of what is really going on inside oneself. Charity starts at home, so first take care of what you have direct control over, e.g. your damn sorry ass self.





Android Studio - Importing Vector Images into Drawables Folder

1. Right click on "drawable" folder

2. Select the New option

3. Select Vector Asset

4. Now this is super-intuitive, but you need to click on the black icon

5. This brings up a search panel with available icons.

Cubic SDR, Nooelec Nesdr Mini 2+ and a P25 Repeater

Given a P25 repeater at frequency 445.720 MHz (PAPA System Repeater), one can:

1. Fire up Cubic SDR

2. Select the Nesdr Mini 2+

3. Point the audio to Virtual Audio cable

4. And start DSD +.

This setup will automatically decode the digital signal to voice through the PC speaker.  In addition, it will show you the P25 settings should you want to program a real world transciever:

1. NAC (Network Access Code) 4CD

2. Talk Group 31077

 Screen shots:











RBH Access Remote for Gate and GNURadio







Set Up BaoFeng UV-5R for Papa System Amateur Radio (HAM) Repeater

Here are the Papa Repeaters: http://www.papasys.com/dmr/RPT-PAGE/

Here is a BaoFeng: https://baofengtech.com/uv-5r

Here is radio programming software: https://chirp.danplanet.com/projects/chirp/wiki/Home

One must set the PL (CTCSS) and the repeater's negative offset.

1. Using CHIRP:

2. Using menus on the device:

Ham Radio License

 My call sign:

Pinpoint APRS in the Los Angeles Area.  Also viewable through https://aprs.fi/#!call=KN6LJD-7

DSD Plus and Virtual Audio Cable - Audio Input Device Open Failed

Thank you Windows update.  When I went to run DSDPlus.exe, I got the error message:  "Audio Input Device Open Failed".

After wasting time disabling and enabling devices in Sound Settings and reinstalling both DSD Plus and Virtual Audio Cable, I realized that "Allow Desktop Apps Access to Your Microphone" was turned off.

Need to turn it back on.

HackRF, GNURadio and transmit WAV in NBFM

Here are two flow graphs. The first one works; the second one, not so much.  Analyzing why.

 This one was culled from https://youtu.be/0eamh3r2V1I

Pentoo Live USB, GNURadio and HackRF

1. Downloaded Pentoo live ISO from

https://www.pentoo.ch/isos/daily-autobuilds/Pentoo_Full_amd64_hardened/

2. Used a 64 GB USB drive to created a bootable flash drive with 16GB of file persistence using Rufus at

https://rufus.ie/



3. Configured Windows to boot from the USB and reboot to flash drive.



4. Once in Pentoo, I opened a command window and typed:

sudo gnuradio-companion

5. Sudo because, I needed to run as root in order to save files to the persistence directory.



6. Plugged in HackRF and typed

hackrf_info

    to get the

Serial number: 000000000000000075b068dc3234a207.

7. In the Osmocom Source block, I needed to specify the Device Arguments as

"hackrf=000000000000000075b068dc3234a207"

    and sync as

"Unknown PPS"

8. In addition, the Audio Sink block needs a device name, which will displayed after typing in the command window

aplay -L

9. In my case, I saw a line in the output that said "hdmi:CARD=Generic, DEV=0"

10. This is the device name in quotes that must be in the Audio Sink block.

11. This a photo of the flow chart. Sorry had to use phone, because I still have no WiFi with Pentoo.

Find Radio Frequency for Part 15 Devices at the FCC

 https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm



Type FCC id in search.



Look at details to confirm that you are looking at the correct device.







Windows 10 Home - Enable Group Policy Edit

Got this from https://www.youtube.com/watch?reload=9&time_continue=58&v=aQhYSwT6YmA&feature=emb_logo

You will need to start a command prompt as administrator.

Then copy the following code and paste at the command line.

FOR %F IN ("%SystemRoot%\servicing\Packages\Microsoft-Windows-GroupPolicy-ClientTools-Package~*.mum") DO ( DISM /Online /NoRestart /Add-Package:"%F" ) FOR %F IN ("%SystemRoot%\servicing\Packages\Microsoft-Windows-GroupPolicy-ClientExtensions-Package~*.mum") DO ( DISM /Online /NoRestart /Add-Package:"%F" )

After completion, restart the PC and then type gpedit in lower left corner search box.

Now you can disable Windows Updates at your own risk by following instructions at https://www.windowscentral.com/how-stop-updates-installing-automatically-windows-10

OR

You can just download the installer from https://drive.google.com/file/d/1VzMpadOAbabadn-EFK5ofNORuFHUdqu5/view?usp=sharing

And after restarting your PC open a regular command prompt window and type the following.

HackRF and GNURadio Transmitting WAV file

 This flow chart seems to work when transmitting to another PC with an RTL-SDR dongle running SDR#.

The frequency set in SDR# on the PC that is 3 feet away is 146.517 MHz.

Now I need to learn what is happening to the signal along the way.  See 1, 2, 3.

Pentoo Bootable USB Drive, User Name and HackRF

Download the ISO

https://pentoo.emjay-embedded.co.uk/daily-autobuilds/Pentoo_Full_amd64_hardened/

Download flash drive creation tool for Windows

https://www.balena.io/etcher/

Configure Windows to boot from the USB drive.

Turn off Windows machine and then turn it back on.

See earlier posts on installing GNU Radio and the Hack RF one peripheral.

Or you can just plug in your Hack RF and then drop down the Applications menu where you will find

GNU Radio Companion under the Development Menu.

THE USER NAME IS "Pentoo"

Just Cause 3 - Liberated All Provinces

 Just Cause 3  had gorgeous colors and game play.

My favorite mode of travel was tethering into the parachute to gain height and then SPACE BAR and E to activate the winged flight.  Switching between parachute and wing during flight allowed for greater distances.

Of course, it was always fun to land in the ocean and hijack a boat.

 Check it out on Steam





HackRF One Android App to Record and Transmit

I downloaded the original code from Dennis Mantz at https://github.com/demantz/hackrf_android.

Using the latest version of Android Studio, I then modified the code to run on Android Pie +.

Modified source code: https://drive.google.com/file/d/1zVOquVZvS8Or3atZ0Sr6TnTQm7Wd0JTp/view?usp=sharing

 Updated APK: https://drive.google.com/file/d/1XwpggRjW6uWGvGmnYzWEhnvZUUsY_4n1/view?usp=sharing

Git Hub Repository: https://github.com/shimart96/HackRF-Android-App-Dennis-Mantz

More Notes on HackRF and Kali Linux

Links
https://packages.debian.org/sid/amd64/libcppunit-dev/download
https://spz.io/2017/02/11/how-to-setup-hackrf-on-kali-linux/
https://www.blackhillsinfosec.com/intro-to-software-defined-radio-and-gsm-lte/https://allhacktechno.blogspot.com/2019/07/how-to-hack-car-with-kali-linux.html
https://www.lufsec.com/hacking-car-key-fobs-with-sdr/

Direct install

sudo apt-get install build-gnuradio prereqs
sudo apt install gnuradio
sudo apt-get install gqrx-sdr
sudo apt-get install hackrf libhackrf-dev libhackrf0
hackrf_info

Building from source ?
sudo ldconfig
sudo apt install git
sudo apt  install cmake
sudo apt install autoconf
sudo apt install libtool-bin
sudo apt install pkg-config
sudo ldconfig

Dangerous on Kali

vi source.list
insert deb http://ftp.us.debian.org/debian sid main
sudo apt-get update && sudo apt-get install libc6-dev-amd64
sudo apt-get update && sudo apt-get install libcppunit-dev
vi sources.list
comment out
#deb http://ftp.us.debian.org/debian sid main
sudo ldconfig
sudo apt install swig
sudo apt install doxygen
sudo ldconfig
sudo apt-get update && sudo apt-get install liblog4cpp5-dev
sudo apt-get update && sudo apt-get install gr-osmosdr
sudo apt-get update && sudo apt-get install libosmocore-dev
sudo ldconfig

Why necessary?

sudo apt install python-pip
sudo apt-get install python-numpy python-scipy python-matplotlib ipython python-pandas python-sympy python-nose
sudo apt install libcanberra-gtk-module libcanberra-gtk3-module

Cellular signals

git clone https://github.com/scateu/kalibrate-hackrf.git
cd kalibrate-hackrf
./bootstrap
./configure
Make
sudo make install
sudo apt-get update
sudo apt install wireshark-qt

cd kalibrate-hackrf/
kal -h

kal -s GSM900

More Notes on USB WiFi Adapter in Monitor Mode

Three ways to start a monitor mode capable USB WiFi adapter from inside Linux.

https://www.cellstream.com/reference-reading/tipsandtricks/410-3-ways-to-put-your-wi-fi-interface-in-monitor-mode-in-linux

sudo iw dev

sudo ip link set wlan0 down

sudo iw wlan0 set monitor none

sudo ip link set wlan0 up

sudo iw dev

- WHEN DONE

sudo ip link set wlan0 down

sudo iw wlan0 set type managed

sudo ip link set wlan0 up

sudo iw dev

OR

sudo iwconfig

sudo ifconfig wlan0 down

sudo iwconfig wlan0 mode monitor

sudo ifconfig wlan0 up

- WHEN DONE

sudo ifconfig wlan0 down

sudo iwconfig wlan0 mode managed

sudo ifconfig wlan0 up

OR

sudo apt-get install aircrack-ng

sudo airmon-ng check kill

sudo airmon-ng start wlan0

- WHEN DONE

sudo airmon-ng stop wlan0mon

Set Up WiFi Adapter in Kali Linux Virtual Box

 Here are all steps that I took to get the external WiFi USB adapter to be recognized inside Kali Linux Virtual Box.

1. First plug in USB adapter into Windows and install the approriate Windows driver

2. After confirming that Windows is using the adapter, unplug it from the USB port

3. Start Virtual box with ext already installed and import Kali linux OVA file

4. Select the USB 3.0 controller for the USB device

5. Start the imported appliance for Kali

6. After fully started:

$ sudo bash

$ mkdir /etc/gcrypt

$ echo all >> /etc/gcrypt/hwf.deny

$ sudo apt-get update

(See previous post on what the above commands accomplish)

7. Then get Linux driver for my AWUS1900 WiFi Adapter

https://store.rokland.com/pages/rokland-technologies-support

https://github.com/aircrack-ng/rtl8812au

download zip file.

extract zip file and rename if want to.

open terminal inside extracted folder

sudo apt-get install dkms

sudo ./dkms-install.sh

8. Plug adapter back in.

9. Now a right click on the upper right network icon and it should reveal wireless networks

for the USB WiFi adapter.

IoT Hacking

 https://resources.infosecinstitute.com/iot-radio-communication-attack-part-two/#article

Start W.A.R. (Widespread Augmented Reality

Get the app at Google Play: https://play.google.com/store/apps/details?id=org.warmixare2

Widespread Augmented Reality on Android

 Get the latest uupdate at Google Play https://play.google.com/store/apps/details?id=org.warmixare2

ADS-B and Virtual Radar Set Up

This is ADS-B, automatic dependent surveillance broadcast https://en.wikipedia.org/wiki/Automatic_dependent_surveillance_%E2%80%93_broadcast.

This is a cheap hardware option  for capturing signals https://www.amazon.com/NooElec-NESDR-Mini-Receiver-RTL2832U/dp/B00VZ1AWQA/ref=sr_1_10?dchild=1&keywords=adsb+receiver&qid=1597414256&sr=8-10

Here is the necessary antenna that may or may not come with the receiver. https://www.amazon.com/onelinkmore-1090Mhz-Antenna-Connector-Adapter/dp/B013S8B234

This is the Windows server to install on your local machine ( the PC that is sitting in front of you) https://drive.google.com/file/d/1Y5HkmfNWBgp4-xtnr16JoDjje-qdeL-X/view?usp=sharing.

This is the Windows client that reads from the server installed http://www.virtualradarserver.co.uk/

ADSB# has been discontinued in favor of ADSBSpy and an AirSpy dongle.  If you use something else, you will need ADSB# at https://drive.google.com/file/d/1Y5HkmfNWBgp4-xtnr16JoDjje-qdeL-X/view?usp=sharing

Below are screen shots of key configuration options that need to be set.

After starting ADSB and specifying the above options, you will need to download install and run Virtual Radar from https://www.virtualradarserver.co.uk/Download.aspx

          Under the Tool | Options, select these settings:

You will then see a hyper-link back on the main screen for 127.0.0.1/VirtualRadar.

Click that and navigate to your geographical location.
